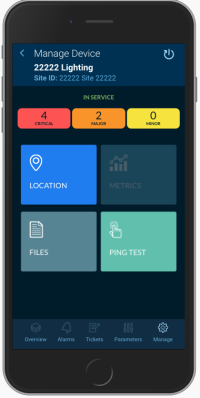

The SnmpManager domain MobileDeviceOptions is utilised for inserting button permissions entries for display on the device / component overview levels in the Mobile Navigator. These entries are associated with a technology entry via this table.The idms-proxy does a lookup of these entries for the technology id of the device and passes them to the DeviceResponse for mobile when a user accesses the Device Overview or Component Overview pages.

The purpose of this domain is to provide a mechanism for controlling functions accessible to certain technologies such as reboot and ping as well as a means to set permissions at a Device or Component level for these functions. The naming for the Component page can also be configured here to show something else for example Remote for DAS use cases.

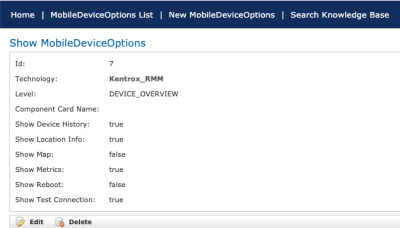

• Current configuration of these values can be done via the following controller link: SnmpManager/mobileDeviceOptions/create

• Or via sql insert into the database table mobile_device_options .

  boolean showLocationInfo // (Controls access to the Location page in the manage tab.)

  boolean showMetrics // (Controls access to the Metrics page in the manage tab.)

  boolean showDeviceHistory // (No longer used, to be removed.)

  boolean showReboot // (Controls access to the Reboot function in the device / component header.)

  boolean showTestConnection // (Controls access to the Ping function in the manage tab.)

  boolean showMap // (No longer used, to be removed.)

  String componentCardName // (Custom name to display at child level overview. Defaults to Component unless specified here.)

  String childComponentNameFilterRegex. // (If set filters the list of child devices (components) to show in the list accessable from the Components card on the Device overview page.)

  Technology technology // (The technology id this permission is associated with for the network element lookup.)

  Level level // (Level to set the permission: DEVICE_OVERVIEW or COMPONENT_OVERVIEW)

Idms Proxy application exposes a REST endpoint which allows for the upload of MobileUiConfiguration and MobileDeviceOptions for a given technologyId.

• Rest Endpoint: https://environmentName/idms-proxy/api/v0/mobileConfiguration/uploadConfig
• Type: POST
• Authentication: OAuth2 - specify authentication token

{
	"technologyId": "37"
	,
	"mobileDeviceOptions": [
			{
	                        "showLocationInfo": true,
				"showMetrics": true,
				"showReboot": true,
				"showTestConnection": true,
				"componentCardName": "Remotes",
				"childComponentNameFilterRegex":"/*test*/",
				"level": "DEVICE_OVERVIEW"
			}
   ],
	"mobileUiConfigurations": [
			{
	             "showOnOverView": true,
	             "showOnComponent": false,
	             "isEditableParameter": false,
	             "parameterName": "test param 1",
	             "discoveredName": "test_1",
	             "priorityOrder": "1",
	             "uiTag": "",
	             "minimumRange": "10",
	             "maximumRange": "100",
	             "lowRange": "30",
	             "highRange": "80",
	             "iconToDisplay": "amplifier",
	             "displayNameField": "Test 1",
	             "showOnMatchingDiscoveredName": false
			},
			{
	             "showOnOverView": false,
	             "showOnComponent": true,
	             "isEditableParameter": true,
	             "parameterName": "test param 2",
	             "discoveredName": "test_2",
	             "priorityOrder": "2",
	             "uiTag": "RANGE_SLIDER",
	             "minimumRange": "10",
	             "maximumRange": "100",
	             "lowRange": "30",
	             "highRange": "80",
	             "iconToDisplay": "amplifier",
	             "displayNameField": "Test 2",
	             "showOnMatchingDiscoveredName": false
	   }
   ]
}
