PULL SnmpManager Configuration
Note: PULL and GET terms are used interchangeably and mean the exact same thing.
General
Polaris asset (i.e. site) data is retrieved daily at 02:00 EST via RemoteFile domain which retrieves the specified file from the remote server (ATC FTP, refer to the PwSafe for details; file name is Errigal_Polaris_Assets.csv, it is located in the root directory of the ATC FTP server).
The retrieved file is processed via a relevant RemoteFileDiscoveryConfiguration assigned to the RemoteFile responsible for retrieving the asset flat file. Such RemoteFileDiscoveryConfiguration entry must have a Polaris assets processing script (found here) assigned as a parse data script.
All the PULL attempts are recorded via the GeneralDiscoverySyncHistory domain with the jobType being REMOTE_FILE_REQUEST (the targetAddress field will also say that the remote file interaction was GET).
Current Configuration (ATC Production)

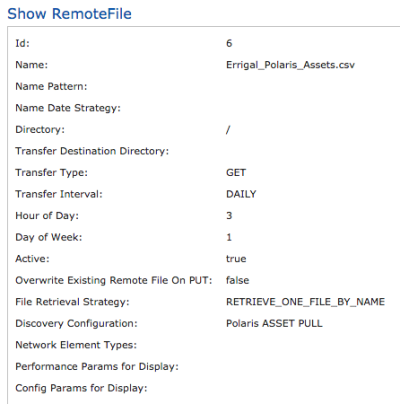

Remote File
Data Model

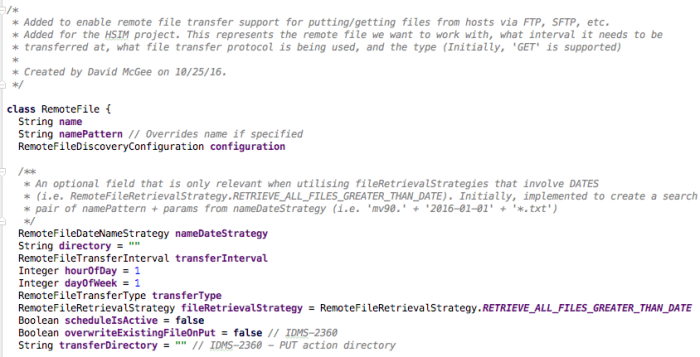

RemoteFile

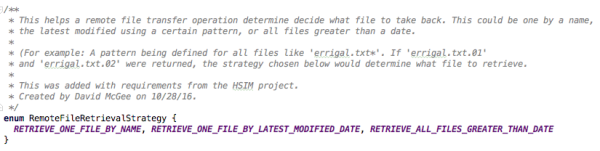

RemoteFileRetrievalStrategy (Enum)
RemoteFileTransferType (Enum)
RemoteFileDiscoveryConfiguration
Troubleshooting
- Verify that the configuration (Configuration) specifies the existing directory as the file transfer directory
- Verify that the remote file is assigned to the correct RemoteFileHost entry and that its details are correct
- Verify that the remote file transfer type is GET
- Verify that the remote file is active
- Verify that the remote file directory is correct and pointing to an existing location on the remote server (i.e. the file to be retrieved)
- Verify that the remote file remote file retrieval strategy is RETRIEVE_ONE_FILE_BY_NAME
- Verify that the correct remote file discovery configuration is assigned to the remote file
- Verify that the correct assets flat file parsing script is assigned to that remote file discovery configuration
- If the Reconcile Data Script and Process Data For KPI Script are not specified for that remote file discovery configuration, create new remote discovery script with the following content: log.debug 'ASSET PULL IN PROGRES…' and specify it for the role of the aforementioned scripts
