— Colm Carew 2017/08/18 01:44

Note for the Waterford Setup all Password and Information should be located inside the password safe - look for PPPoE

This is for if the VDSL router has been changed to modem mode and we need to enter the VDSL info onto the juniper 5GT 101

• Browse to the juniper router 10.5.5.1 and log in

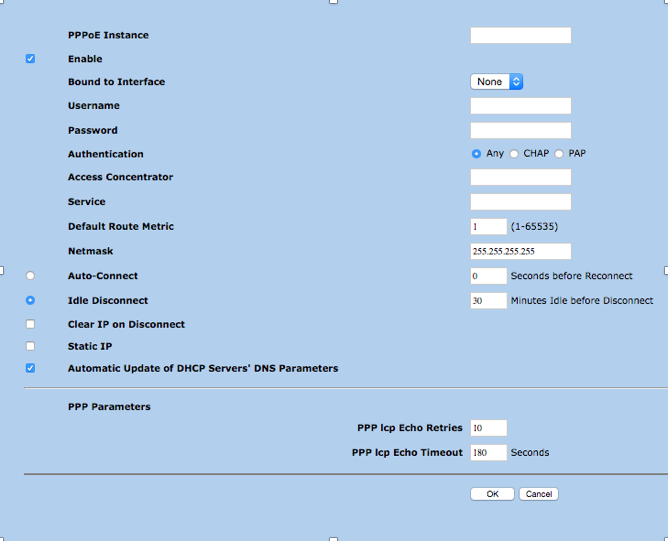

• Go to Network → PPP → PPPoE Profile and click new

• Fill in the PPPoE Instance to be a suitable name
• Bound it to the untrust interface
• Username and password have to be obtained from the ISP (VLANID may also be given but should not be needed here)
• Change the netmask to be the netmask they provided (shouldn’t cause issue if left as default)

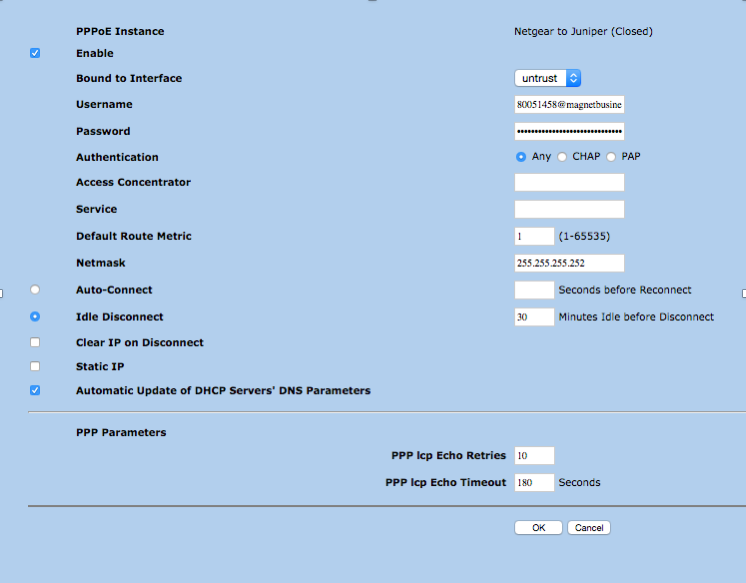

• Click save and if you click edit it should look similar to this:

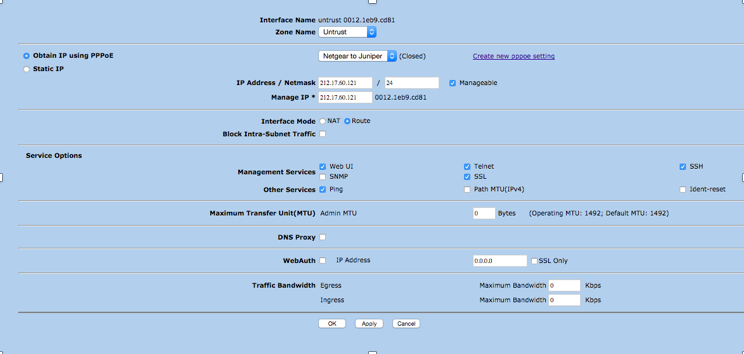

• Next go to Network → Interfaces → Untrust and click edit on this
• The Obtain IP using PPPoE should be selected and the Name of the PPPoE profile should have been automatically selected from the dropdown

• The device should now be able to connect to the internet and have the public ip address assigned to the juniper router as the modem is not only a modem.
